Environment concerned, efficient and precise new generation dredger
Reduction of turbid emission with watertight grab
Quick movement by kicking spud during anchorless operation
Advanced control and management instruments aiding accurate excavations
Prossible to excavate extra hard bedrock by combination of rock breaker and heavy grab
Double hull of fuel tank preventing any fire spread or oil leak

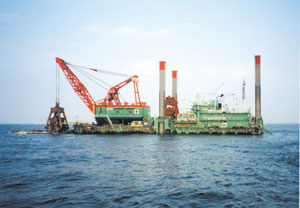

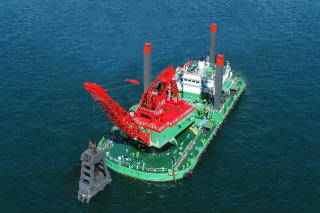

関門
dredger for hard ground with a self-weight 200t ultra-heavy grab, equipped with/or capable of:
dredging mechanism with a maximum hoisting capacity of 250t; a capacity 17.5m3 ultra-heavy grab bucket for hard ground weighing 200t ; a capacity 32.5m3 heavy grab bucket for normal ground weighing 130t ; dredging sand,soil and rock plate up to a depth of 100m
real-time centralized controlled system with GPS and an echo sonar
anchor-chain mooring, spud mooring effective to a depth of 20m and anchorless dredging at waterways or narrow water areas
grab bucket with an automated level excavation device which minimizes overexcavation
side thrusters at the bow and stern which easily give her positioning and rapid shift a big mooring gear adequate against strong currents which can cover a speed of up to 9 knots

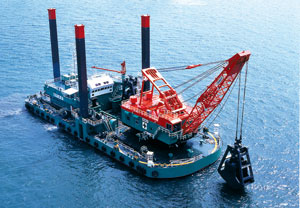

関雄
new-type grab bucket dredger with a rock-breaking rod, equipped with/or capable of:
dredging mechanism with a maximum hoisting capacity of 160t; a capacity 13.0m3 ultra-heavy grab bucket for hard ground weighing 130t; a capacity 27.5m3 heavy grab bucket for normal ground weighing 90t; dredging sand, soil and rock plate up to a depth of 85m
real-time centralized controlled system with GPS and an echo sonar
anchor-chain mooring, spud mooring adequate to a depth of 18m and anchorless dredging at waterways or narrow water areas
grab bucket with an automated level excavation device which minimizes overexcavation
side thrusters at the bow and stern which easily give her positioning and rapid shift
a big mooring gear adequate against strong currents which can cover a speed of up to 9 knots

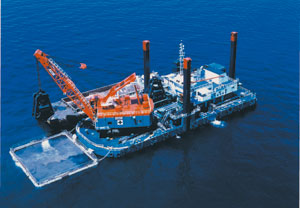

第二関雄
new-type grab bucket dredger with a rock-breaking rod, equipped with/or capable of:
dredging mechanism with a maximum hoisting capacity of 160t; a capacity 13.0m3 ultra-heavy grab bucket for hard ground weighing 130t; a capacity 30.0m3 heavy grab bucket for normal ground weighing 90t; dredging sand, soil and rock plate up to a depth of 85m
real-time centralized controlled system with GPS and an echo sonar
anchor-chain mooring, spud mooring adequate to a depth of 18m and anchorless dredging at waterways or narrow water areas
grab bucket with an automated level excavation device which minimizes overexcavation
side thrusters at the bow and stern which easily give her positioning and rapid shift
a big mooring gear adequate against strong currents which can cover a speed of up to 9 knots
